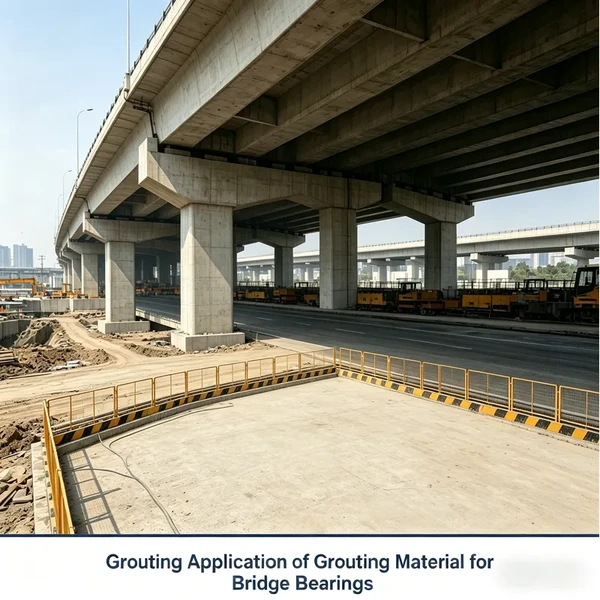

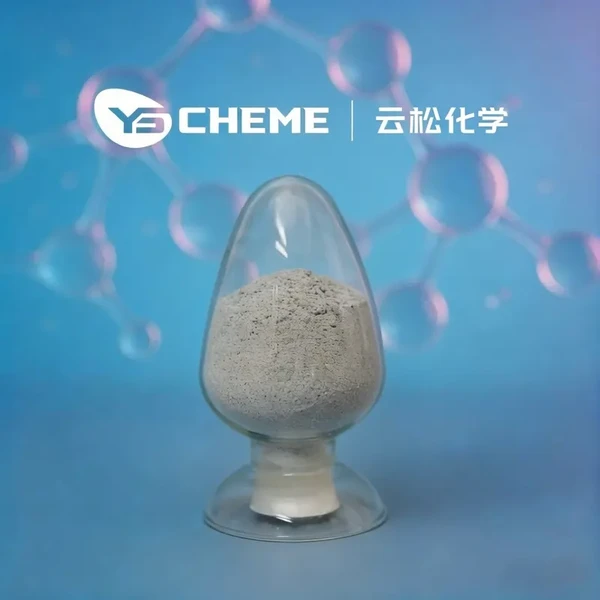

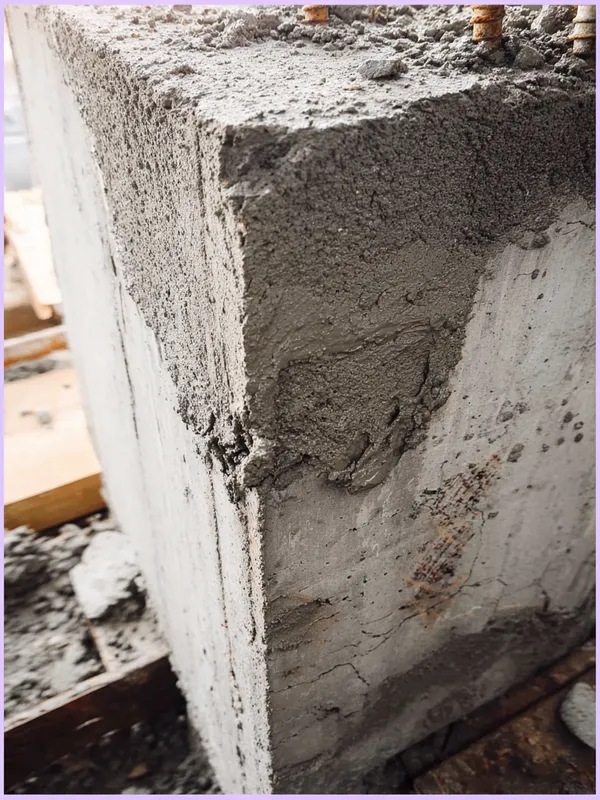

Non-Shrink Grout is a cement-based dry powder with high fluidity, strength, and micro-expansion properties. After mixing with water, it forms a stable grout with excellent crack resistance, bonding strength, and durability. The product is suitable for structural grouting, equipment base installation, and repair applications.
| Item | Class I | Class II | Class III | Class IV |
| Max Aggregate Size (mm) | ≤4.75 | ≤4.75 | ≤4.75 | >4.75 ≤25 |
| Initial Flow (mm) | ≥350 | ≥340 | ≥290 | ≥650 |
| 30 min Flow (mm) | ≥350 | ≥310 | ≥260 | ≥550 |
| 3h Vertical Expansion (%) | 0.1–3.5 | 0.1–3.5 | 0.1–3.5 | 0.1–3.5 |
| 24h & 3h Expansion Difference | 0.02–0.50 | 0.02–0.50 | 0.02–0.50 | 0.02–0.50 |
| Compressive Strength 1d (MPa) | ≥15 | ≥15 | ≥15 | ≥20 |
| Compressive Strength 3d (MPa) | ≥30 | ≥30 | ≥30 | ≥40 |
| Compressive Strength 28d (MPa) | ≥50 | ≥50 | ≥50 | ≥60 |
| Bleeding Rate (%) | 0 | 0 | 0 | 0 |
| Chloride Content (%) | <0.1 | <0.1 | <0.1 | <0.1 |
※ More grades available upon request.
Non-Shrink Performance
Compensates shrinkage and improves dimensional stability.
High Flowability
Ensures easy placement and filling.
High Early Strength
Supports fast installation and repair.
Excellent Durability
Improves bonding and structural performance.
